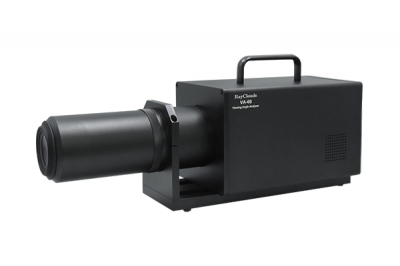

V-Series Virtual Display Analyzer-Spectrum

V-Series Virtual Display Analyzer-Spectrum

Virtual display optical analyzer-Spectrum equipped with high-resolution detector and wide field of view front diaphragm lens, and built-in optical splitter to connect to the optional built-in spectral analysis module to realize single-point spectroradiometer function. Through automatic calibration, the precision of virtual display optical analyzer is improved to the level of spectroradiometer. The spectral analysis data of spectroradiometer are also provided.

V-Series Virtual Display Analyzer-Spectrum characteristics

  • The front diaphragm lens is designed to simulate the eye pupil size of the human eyes.
  • Optional 50 °, 70 °, 100 °, 120 ° wide field of view test lens.
  • Built-in spectrometer to provide spectral analysis data.

V-Series Virtual Display Analyzer-Spectrum application

  • Near-Eye Display devices(NED)
  • Augmented Reality devices(AR)
  • Mixed Reality devices(MR)
  • Virtual Reality devices(VR)

V-Series Virtual Display Analyzer-Spectrum specification

Model

V-20S

V-26S

V-46S

V-61S

Pixel

20million

26million

46million

61million

Cooled

Two stage TEC.(Typical -45 below Ambient)

Dynamic Range

>1000000:1(Multiple exposure or ND filters)

Pixel Depth

16bits

Exposure Time

10us to 65s

Measurement

Function

Luminance、CIE1931 & CIE1976,CCT,Dominant wavelength, Tristimulus value

Luminance

Measurement range

0.0001 to100,000cd/m^2

Accuracy*¹

±3%

Repeatability(δ)*¹

±0.5%

Chromaticity

Illuminant A*¹

±0.002

LED Light Source*¹

±0.002

Standard LCD*¹

±0.002

Other Uncorrected Source*¹

±0.01

Repeatability(δ)*¹

±0.0003

Lens

A-50(50 degrees diagonal)|A-70(70 degrees diagonal)

A-100(100 degrees diagonal)|A-120(120 degrees diagonal)

Dimension

220*140*140(L*W*H)

Interface

LAN

Operation

Temperature

5 to 50°C

Input Voltage

AC Adapter

*Measurement of luminance and chrominance measurement is based on RayClouds conditions (using 500cd/m2 standard light source, LED backlight, 6500K LCD display).
*Repeatability measurement conditions @ using a luminance 500cd/m^2 standard light source, taking the average of 100 pixels in the center.
*Specifications and appearance are subject to change without prior notice.
